LSC
The LSC pump is a submersible single-phase portable residue drainage pump. The specially designed bottom plate enables the pump to drain down to 1mm water level. It has a swing check valve that prevents reverse-flow of the sucked water when the pump stops its operation.
Product Description
Portable Residue Dewatering Pumps

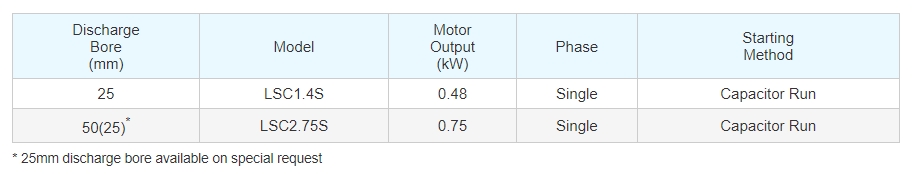

Discharge Bore(mm) : 25 – 50
Motor Output(kW) : 0.48 – 0.75
The LSC pump is a submersible single-phase portable residue drainage pump. The specially designed bottom plate enables the pump to drain down to 1mm water level. It has a swing check valve that prevents reverse-flow of the sucked water when the pump stops its operation. The rubber lined base plate protects the floor surface from scratching. Though the pump is a single-phase unit, it has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
