LH-W

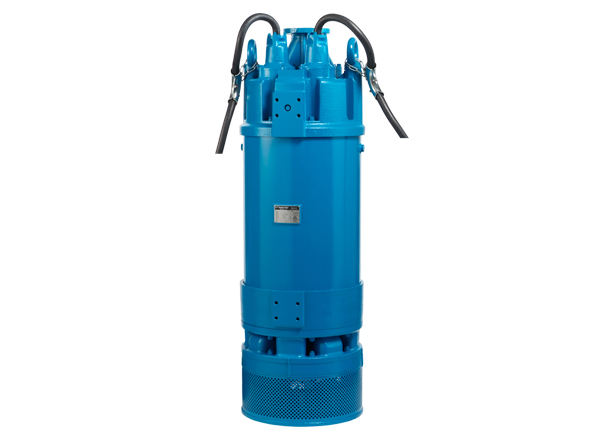

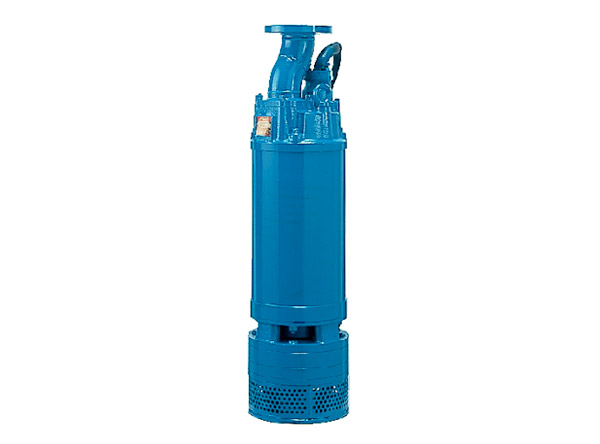

The LH-W-series is a three-phase cast iron extra high head drainage pump having dual impellers. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe.
Product Description
High-Head Dewatering Pumps (Dual Impellers)

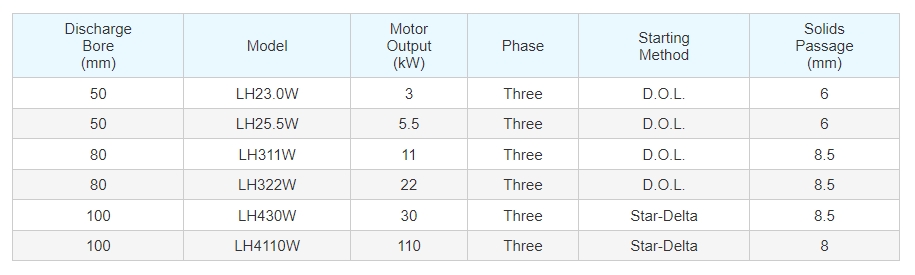

Discharge Bore(mm) : 50 – 100
Motor Output(kW) : 3 – 110
The LH-W-series is a three-phase cast iron extra high head drainage pump having dual impellers. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe.*1 The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.*2
*1 excluding LH4110W
*2 excluding LH23.0W
