Dry-installed pump

Horizontal single-stage close-coupled circular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings and motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.

Main Applications

• Cleaning systems (bottle rinsing, crate washing and similar systems)
• Water treatment systems
• Water supply systems
• Fire-fighting systems
• Spray irrigation systems
• General irrigation systems
• Drainage systems
• Hot-water heating systems
• Air-conditioning systems
• Industrial washing machines
• General industry
• Disposal of paint sludge
• Surface treatment systems

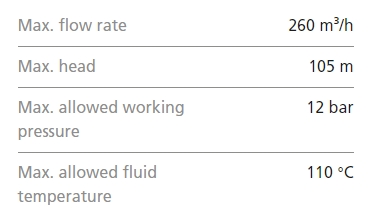

Technical Data

• Maintenance-free mechanical seal ensures operating reliability
• Easy to dismantle due to back pull-out design; no need to remove the pump casing from the piping
• Optimised hydraulic components for high efficiency help reduce energy consumption
• Corrosion-resistant: wetted components made of stainless steel (1.4571)
• Long service life, maintenance-free with high-quality standardised mechanical seal to EN 12756

• PumpDrive, PumpDrive Eco, PumpDrive R – Speed Control System
• KSB SuPremE in IE5*
• KSB-PumpMeter – Pump Monitoring Unit
• Original KSB Spare Parts Kits for Eta Pumps
• The Eta pump family
